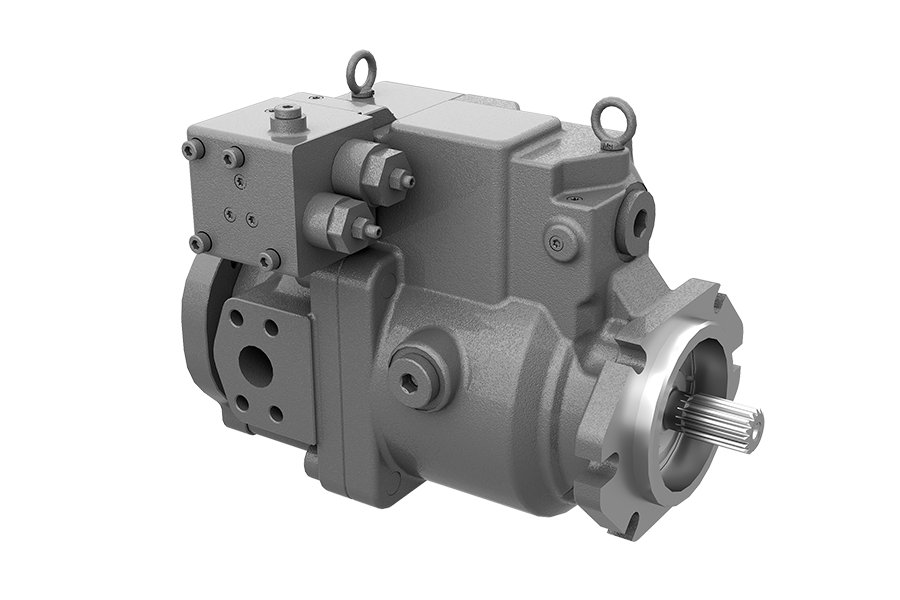

Home Products Hydraulic Pumps Pump (Open-loop) HP3V Series Swash-plate Type Axial Piston Variable Displacement Pump

Please configure the following parameters

the key parts of the pump are made of imported materials, quality strictly controlled, suitable for high-pressure hydraulic applications.

Specifications：140 cc/rev
Rated pressure：350 bar
Peak pressure：400 bar

****

Open all | Close all

Variable pump in swash-plate design for open circuit.
High continuous pressure.
Exceptional self-priming capability.
Available with American (SAE) and Japanese (JIS) mounting flanges and shafts.
Excellent reliability and long life.
High power to weight ratio.
Variety of control options.
Optional through drive.
Quick control response.
Low pressure pulsation and low noise.
Developed for engineering, mobile vehicles, Industrial and other industrial application.

Size		140
Displacement (cc/rev )		140
Pressure	Rated pressure (bar）	350
	Peak pressure (bar）	400
Rotation speed	Max for self-priming (rpm)	2150
	Max (rpm)	2500
Weight (Kg)		65
Quantity of oil to fill pump case (L)		1.4
Temperature Range (℃ )		-20~95
Viscosity Range (mm2/s)		10-1000 (The best use of viscosity range 16~36 mm2/s)
